Model：MM35S
Product Features
- Mechanical Limit Switch
- Precise Setting of Limit Positions
- 5-Year Warranty
- Stable Performance
- Low Noise
- Easy to Install
- Optional colors: Yellow, White, Blue, Green, and customized
Certification
Technical Parameter
|
Model |
Torque |
Speed |
Voltage |
Frequency |
Power |
Currency |
Degree of Protection |
Running Time |
|
MM35S-10/10 |
10N.m |
10rpm |
12V |
50Hz/60Hz |
60W |
5A |
IP44 |
∞ |
|
MM35S-10/10 |
10N.m |
10rpm |
24V |
50Hz/60Hz |
60W |
2.5A |
IP44 |
∞ |
|
MM35S-6/28 |
6N.m |
28rpm |
230V/120V |
50Hz/60Hz |
125W |
0.5A |
IP44 |
4min |
|
MM35S-10/17 |
10N.m |
17rpm |
230V/120V |
50Hz/60Hz |
125W |
0.5A |
IP44 |
4min |
|
MM35S-12/14 |
12N.m |
14rpm |
230V/120V |
50Hz/60Hz |
140W |
0.6A |
IP44 |
4min |

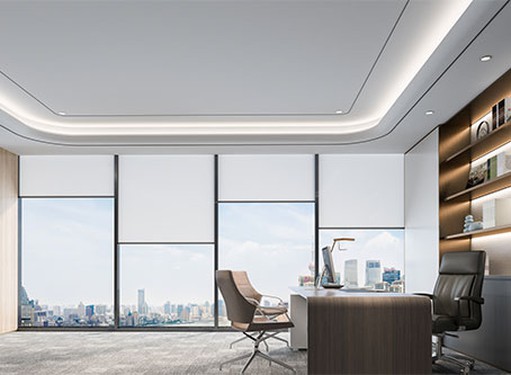

Application
