Professional 92mm Tubular Motor Manufacturer





Located in Ningbo, the epicenter of tubular motor production in China, MIGA Mechanic and Electronic Technology benefits from proximity to material suppliers and one of China’s busiest sea ports. We engage in the R&D and manufacturing of all tubular motor types, corresponding control systems, and intelligent sunshade/window & door operating systems.







Why Choose Us
01.

Quality Assurance

All products are TUV, CE, UKCA, UL & RoHS certified. We use only high-quality raw materials and world-class spare parts.

02.

Rich Experience

MIGA operates 2 factories covering over 13,500 square meters with 200 staff. Our team includes engineers with over 20 years of experience, ensuring products with excellent functionality and long service lives.

03.

Professional R&D Team

We have established precision motor metal stamping, plastics divisions, and supporting industrial clusters. Our R&D team continuously develops innovative solutions for window, door, and sunshade automation.

04.

One Stop Service

One-stop purchasing, saving worry, effort and cost. Super backing technical service support to help you fully open up the market.



Types of 92mm Tubular Motor



92mm Manual Tubular Motor

92mm Manual Tubular Motors have a relatively simple design. They are typically composed of a motor, a gearbox, and a manual control mechanism.


92mm Standard Tubular Motor

92mm standard tubular motor is perfect for industrial applications. High torque and reliable performance. Ideal for door operators and other machinery.


92mm Manual Override Tubular Motor

92 Manual Override Tubular Motors are designed to fit round tubes with a diameter of 92mm. These motors allow the awning or shutter to be operated manually in the event of a power failure.





Technical Parameter


Model

Torque

Speed

Voltage

Frequency

Power

Currency

Degree of Protection

Running Time

MM92M-140/12

140N.m

12rpm

230V

50Hz

800W

3.5A

IP44

4min

MM92M-180/12

180N.m

12rpm

230V

50Hz

855W

3.7A

IP44

4min

MM92M-230/12

230N.m

12rpm

230V

50Hz

945W

4.1A

IP44

4min

MM92M-300/6

300N.m

6rpm

230V

50Hz

880W

3.8A

IP44

4min

MM92M-330/6

330N.m

6rpm

230V

50Hz

905W

3.9A

IP44

4min

MM92M-330/7.5

330N.m

7.5rpm

230V

50Hz

925W

4A

IP44

4min

MM92M-400/6

400N.m

6rpm

230V

50Hz

980W

4.3A

IP44

4min

MM92M-500/3.5

500N.m

3.5rpm

230V

50Hz

1045W

4.5A

IP44

4min





Advantages of 92mm Tubular Motor

Low Noise: One of the significant advantages of 92mm tubular motors is their low noise operation. These motors are designed with noise reduction technology, ensuring quiet and smooth movement of the roller shutters or blinds.



Strong Concealment: 92mm tubular motors are known for their strong concealment capabilities. This design not only provides a neat and streamlined appearance but also enhances the overall aesthetics of the space.



Small Volume: The compact size of 92mm tubular motors is another advantage. The compact design ensures that the motor does not take up much space, allowing for efficient and flexible installation options.



Easy Installation: 92mm tubular motors are designed with ease of installation in mind. The motors are typically compatible with standard roller shutter or blind systems, making them readily adaptable to existing setups.

92mm Manual Tubular Motor suppliers



92mm Manual Tubular Motor Compared to Automatic Tubular Motor





The most obvious difference between 92mm Manual Tubular Motors and automatic tubular motors lies in their operation modes.

With a 92mm manual tubular motor, users need to physically interact with the motor to control it. For example, they might use a crank handle or a chain to turn the motor, which in turn moves the blinds or awnings. This hands - on approach gives users a direct sense of control. It is also useful in situations where power is not available, such as during a power outage.

Automatic tubular motors, however, offer a hands - free operation. With just a click of a button on a remote control, users can open or close their blinds or awnings. Some advanced automatic motors can be programmed to open or close at specific times of the day, or they can be linked to sensors that detect sunlight or temperature. For instance, when the sun gets too bright, the motor can automatically close the blinds to block the glare.



Application of 92mm Tubular Motor



Roller Shutters: Widely used for commercial, industrial, and residential roller shutters due to its strong torque and stable operation.
Garage Doors: Provides reliable automation for large and heavy garage doors.
Awning Systems: Suitable for retractable awnings, ensuring smooth extension and retraction.
Industrial Doors: Ideal for high-duty cycle applications such as factory entrances and warehouses.

modular-1
modular-2
modular-3
modular-4
modular-5

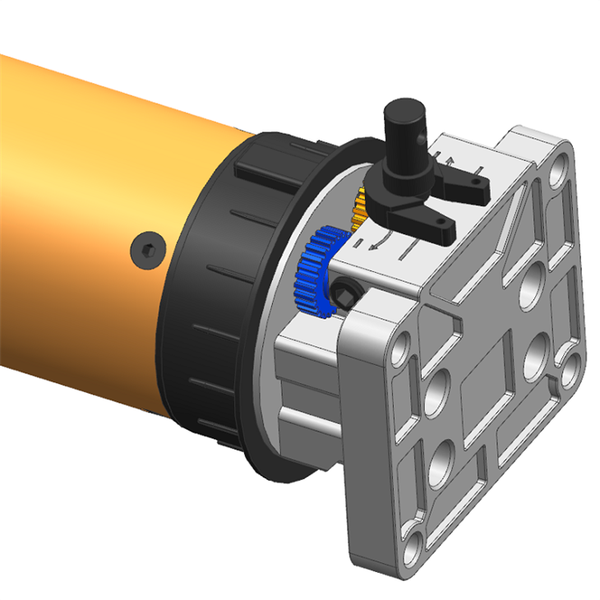

92mm Manual Tubular Motor factory



Installation Process Considerations

Before starting the installation, it is important to carefully read the installation manual that comes with the tubular motor. The manual will provide detailed instructions on how to wire the tubular motor, mount it, and test its functionality. It is also a good idea to turn off the power supply to the motor before starting any wiring work to avoid electrical shocks.



During the installation, pay close attention to the wiring connections. Make sure to connect the wires to the correct terminals on the receiver and the motor. Incorrect wiring can lead to the receiver not functioning properly or even cause damage to the motor or the receiver itself.



After the installation is complete, test the tubular motor to ensure that it is working correctly. You can use a remote control for tubular motor to test the operation of the motor. If the motor does not respond as expected, double - check the wiring connections and refer to the troubleshooting section of the installation manual.



How We Cooperate






Inquiry and Contact

Reach out to us via email, phone, or our website with your wholesale requirements.




Product Selection

Browse our extensive product catalog to select the items that meet your needs.




Customization Discussion

If customization is required, discuss and finalize the specifications with our team.




Quotation and Agreement

Receive a detailed quote from us and proceed with signing a mutual agreement.




Production and Quality Assurance

We commence production while adhering to stringent quality control standards.




Logistics and Shipping

Logistics details are confirmed to ensure efficient and safe transportation of products.




Delivery and Documentation

Products are delivered along with all necessary documentation like shipping notes, packing lists, etc.




Post-Sale Support

We offer comprehensive after-sales support including product queries and troubleshooting.



Packaging and Delivery


Payment Method

Usually we accept T/T, L/C, Western Union, Credit Card etc. If you prefer other payment terms, please feel free to discuss with us.

Delivery Time

About 15-30 days, need check stocked raw material spec is enough or not.

Packaging

Inner box with foam protection + standard export carton.

Mode of Transportation

We ship by sea, air, or express courier depending on order size and urgency.



Our Factory


Offering high-quality tubular motors and intelligent control systems at China's best quality-price ratio, combined with exceptional customer service, we remain unbeatable among manufacturers.

productcate-1-1productcate-1-1productcate-1-1productcate-1-1



FAQ

Q: Is the 92mm manual tubular motor energy efficient?

A: The 92mm manual tubular motor has some features that can contribute to its energy efficiency. For starters, it's a manual motor. That means you don't have to rely on continuous electrical power to operate it. You can simply use a manual crank or a chain to open and close your shutters, blinds, or awnings. This is a huge plus when it comes to saving energy, especially if you don't need to use the motor very often.

Q: What parts does a 92mm tubular motor consist of?

A: A tubular motor, also known as a tube motor or tubular linear motor, consists of a magnetic rotor and an electric coil in a housing. The piston rod is the magnetic rotor (magnets placed at fixed distances in a tube). The box is the electric coil. The magnetic rotor slides through a plastic slide bushing, which is housed in the coil box. When the coil is energized, the magnetic rotor thus moves. An integrated distance measuring system enables position detection.

Q: What kind of doors is this motor best suited for?

A: This motor is ideal for heavy-duty applications, especially large roller doors in residential or commercial settings.

Q: Is the motor protected against dust and water?

A: Yes, it has an IP44 protection rating, which protects against solid objects over 1mm and water splashes from any direction.

Q: Can this motor handle high torque requirements?

A: Absolutely, the 92mm tubular motor offers high torque outputs, ranging from 140Nm to 330Nm, making it capable of handling large and heavy doors with ease.

Q: My tubular motor is not responding to the remote control. What should I do?

A: Check the batteries in the remote control and make sure they are functioning. If the batteries are fine, ensure that there are no obstacles blocking the signal between the remote and the motor. Additionally, check if there is power to the motor and if the motor is properly programmed to the remote.

Q: The 92mm tubular motor is making unusual noises during operation. Is this normal?

A: Unusual noises may indicate issues with the motor. Common causes include misalignment, worn-out components, or the need for lubrication. It is recommended to inspect the motor for any visible damage and consult the user manual for maintenance guidelines.

Q: How can I program the limits for my 92mm tubular motor?

A: Refer to the user manual for specific instructions on programming the limits of the tubular motor. Typically, this involves setting the upper and lower limits by running the motor to the desired positions and programming the limits using the control system.

Q: Is it normal for the 92mm tubular motor to get warm during operation?

A: It is common for tubular motors to generate some heat during operation. However, excessive heat may indicate a problem. Ensure that the motor is not overloaded, and there are no obstructions preventing smooth movement.

We're professional 92mm tubular motor manufacturers and suppliers in China, specialized in providing high quality products and service. Please feel free to buy customized 92mm tubular motor made in China here from our factory.

92mm Standard Tubular Motor, External Venetian Blinds Tubular Motor, Tubular Motor for Garage Door
